Technical Data

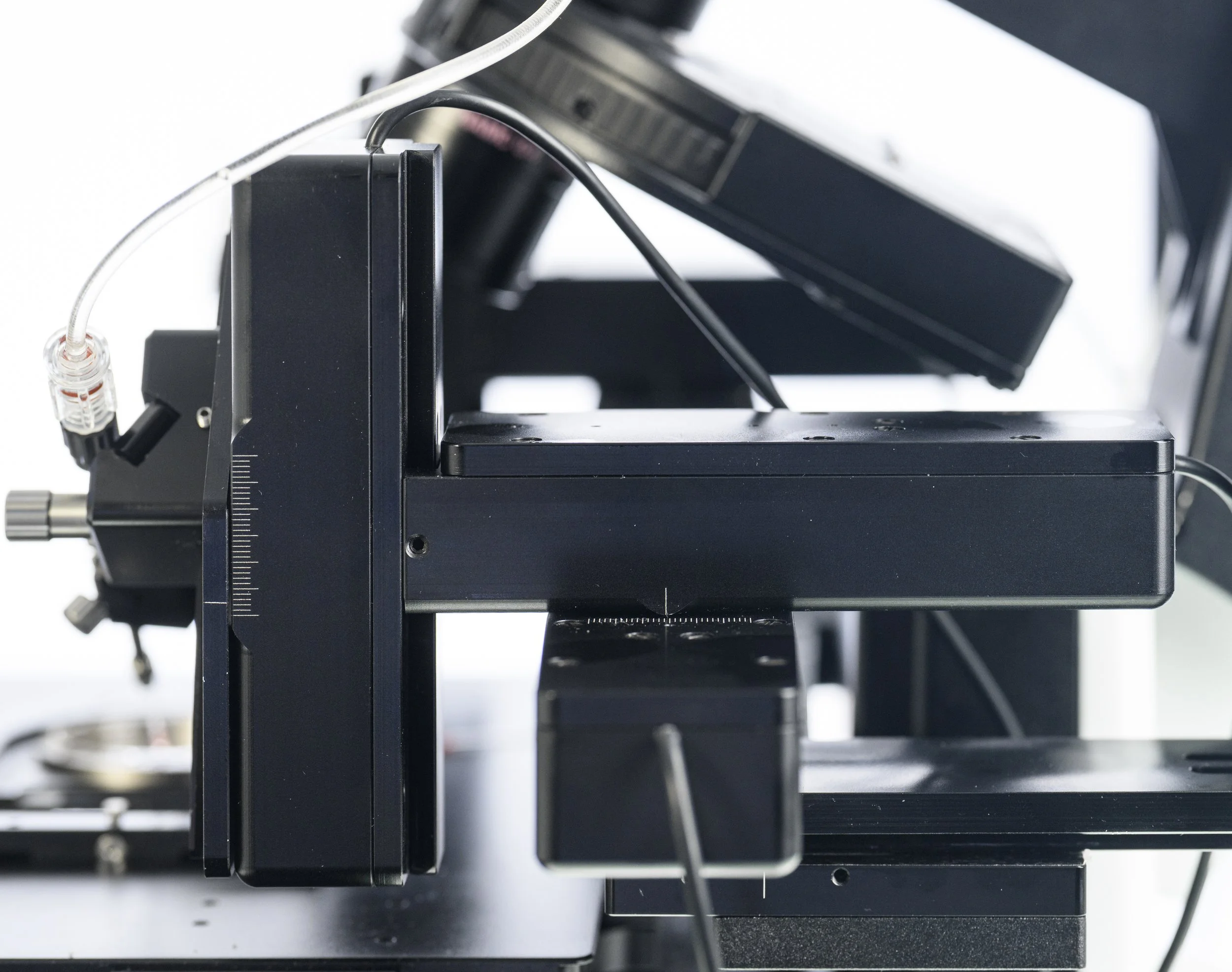

LN- Manipulator XYZ

  • 30mm range

  • 3,8nm smallest step

  • repeatability far under 1 micron

  • free of maintenance

  • fast movement up to 16mm/ s

  • ultra stable system

LN- Joystick control

  • inbuild new auto demobilization function

  • two velocity areas for X and Y movement

  • pressure and pipette movement in three dimensions controlled by in- House developed Joystick

  • 5 free programmable function buttons

  • HOME- function for easy pipette change

  • counter

  • touch display

  • Y- deactivation function for safe injection

  • 3 different velocities for XYZ pipette control

  • ergonomically designed Joystick

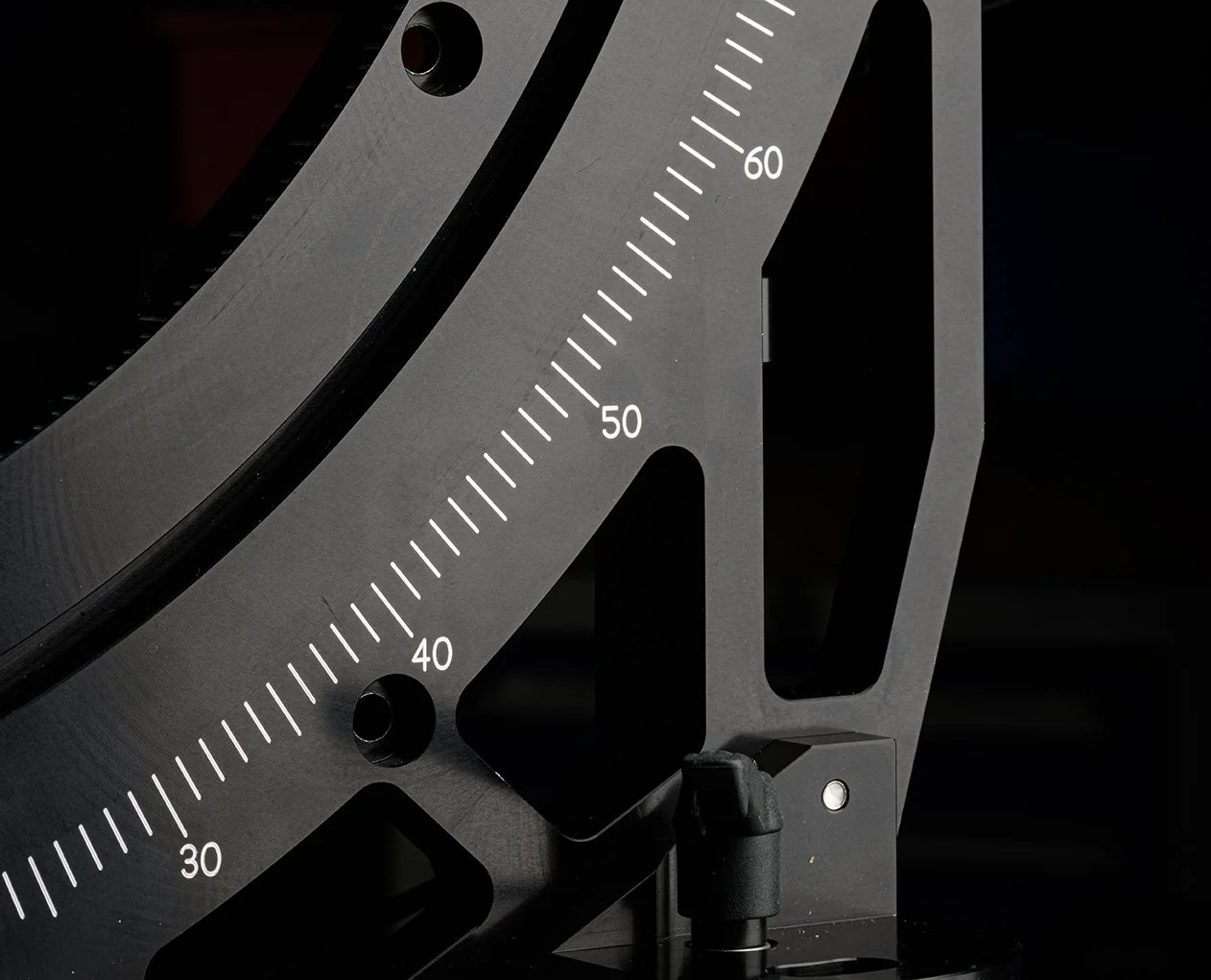

LN- Angle Adjustment

  • one finger adjustment

  • from 20 to 45 degree

  • pull back mechanism for ICSI needle holder

  • swing out mechanism for exchanging needle

  • easy to adjust in the rotation

Home

LN- Injection- Holding

  • motorized injection/ holding side

  • due to oil, no dead volume

  • direct response between aspiration and injection

  • fine movement due to superior motorized manipulator

  • Air/ Oil manual injectors are available
